Series ZY insulation oil purifier machine is efficient and economical insulating oil purifier. Duplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 times than traditional oil purifier.

Description

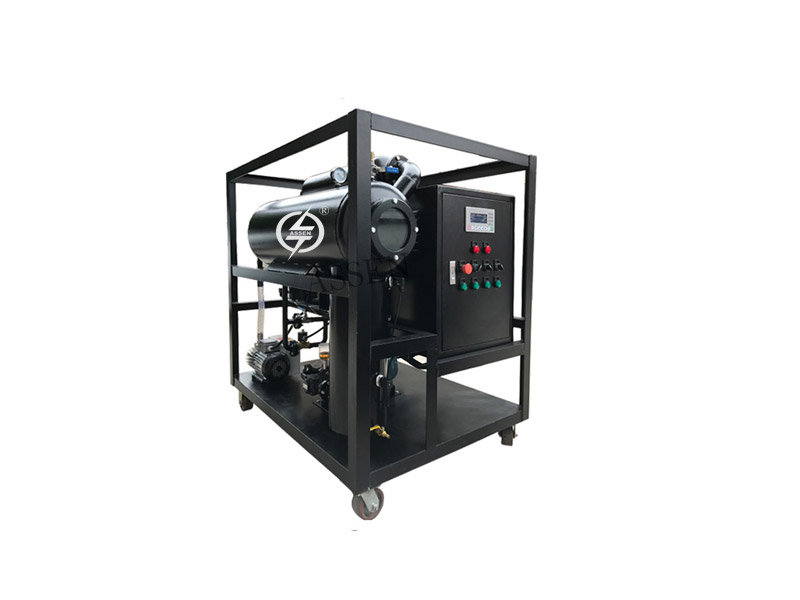

ZY Insulating Oil Purifier Machine



Application:
ZY Insulating Oil Purifier machine is applied to treat all kinds of contaminated insulating oil, circuit breaker oil, dewater, degas and remove particles of oils, shortening the oil treating duration during installation and maintenance of transformer. It also can be used to inject the oil into the insulation device directly, and vacuum evaporates the oil.

insulating oil purifier



Features:
1.The main transformer 10-35KV insulating oil dehydration, degassing, and impurity removal.
2.The main transformer 10-600KV insulating oil removes acetylene.
3.The main transformer 10-110KV pumped insulating oil vacuum drying.
4. It can effectively filter out 100% of free water and 99.9% of dissolved water in oil, and it also can also filter out 100% of free gas and 98% of dissolved gas.
5. The maximum processing capacity of the transformer oil purifier plant can meet the 10,000 liters of single transformer insulation oil purification treatment.

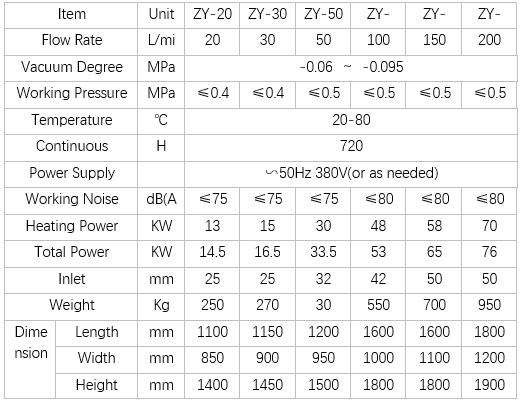

Insulating Oil Purifier’s Technical Data:
insulating oil purifier



ZY Insulating Oil Purifier’s Advantage
This model is tailored according to the nature of insulating oils, so it can effectively remove liquid, solid, and gas impurities from used oil, expanding the service life of oil and the operating efficiency of machinery. The recycling process also enhances oil quality and restores oil viscosity.



Our Delivery
insulating oil purifier



TY Turbine Lube Oil Filter unit                        ZYD-M Trailer Transformer Oil Treatment Plant





ASSEN company is one of the most reliable and most professional oil purifier products manufacturers in China, we pay attention to quality, control costs, We can provide the most competitive oil cleaning equipment for customers. For any inquiry, please don’t hesitate to contact us.
